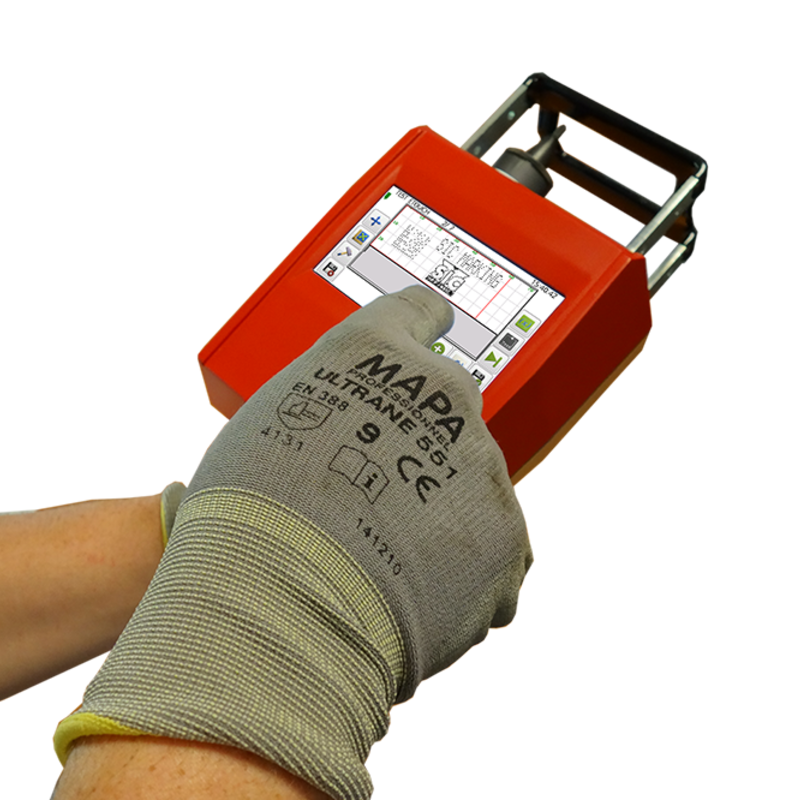

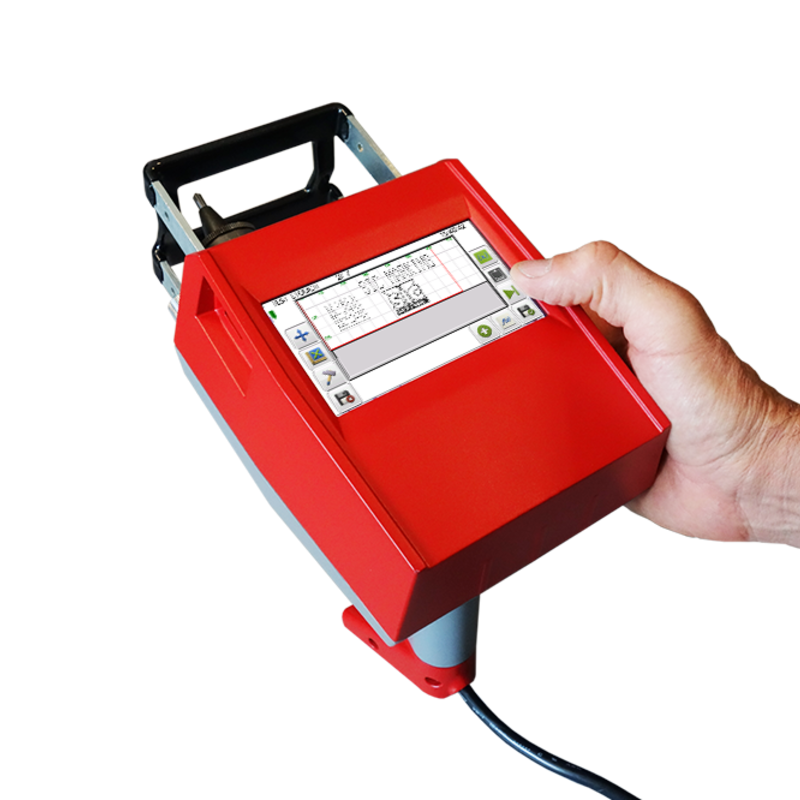

E-TOUCH MARKING SYSTEM
5 (1 đánh giá)
The e-touch portable marking system allows the identification of parts using dot peen technology. This process ensures reliable and unalterable marking directly the material. The marking (text, logo, 2D Data Matrix code and QR Code) is defined by a succession of dots produced by a tungsten carbide stylus mounted in an electromagnetic striker assembly.
The e-touch has 3 front plates that allow it to adapt to the numerous marking configurations. The standard front plate, specially designed for marking flat parts or cylinders. The magnetic front plate is perfectly adapted to the marking of metal parts.
The great novelty of the front plate is their fixing system. This is done using a magnetic system that is unique on the market and allows you to change one side to the other very quickly.
Contact
(+84)-964-658-958
Advantage
ULTRA MOBILE
The lightest and most compact portable in the world!
FUNCTIONAL
Interchangeable front plates via a new magnet system
TOUCH SCREEN
User-friendly icon-based programming
ALL IN ONE
Embedded controller
E-TOUCH MARKING SYSTEM
MECHANIC FEATURES:
- Marking window: 60 x 25 mm
- Dimensions: 210 x 125 x 220 mm
- Weight: 1.9 kg
- Robotic Cable: 5m
- Stylus: Carbide
ELECTRONIC FEATURES
- HD Color Screen: 95 x 55 mm
- Keyboard: Tactile
- Power: 100 W
- Supply: 100 to 240 VAC, 50/60 Hz
STEERING SOFTWARE
The e1 integrated controller software is used to program all parameters directly through the keyboard (autonomous operation). A Windows tool library also allows programming a PC.
- Marking Files: Up to 20,000
- Memory: 100 Mb
- Variable: Alphanumerical, Serial, Date, Barcode, and Logos
- Marking Files: Upload/Download a USB Key
- Fonts: Courier, 4 x 6, OCR-Bold, OCRA, and OCR
- Marking Type: Linear, Radial, Angular, Datamatrix, and Logo
- Speed: Up to 2.5 Characters per Second
- Character size: 1 mm (minimum)
- Impact Force: 1 to 9
- Marking Depth: 0.3 mm
- Resolution Between Dots: 0.05 mm
- Password: 1 security level
OPTIONS
- MAINTENANCE KIT
- WIRELESS BARCODE READER
