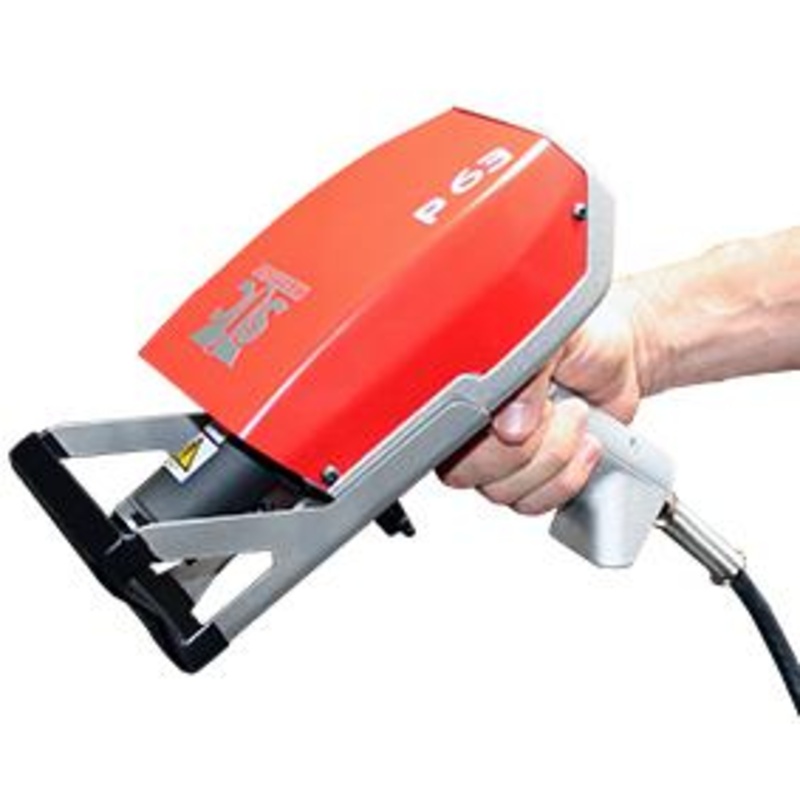

E10 P63 PORTABLE MARKING SYSTEM

MECHANIC FEATURES

• Marking Window:: 60 x 25 mm
• Dimensions: 260 x 139 x 211 mm
• Weight: 2.6 kg
• Robotic Cable: 7.5m (up to 15m available)
• Stylus: Carbide 60 mm
• Stability: V-Shaped Front with Anti-Slip Surface
• Setup Positioning: Adjustable Memory Front Plate
• Lighting: LEDs

ELECTRONIC FEATURES

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected harsh elements such as water, chemicals, dust, and material fragments.

Marking files can be up/downloaded a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.

• Dimensions: 322x380x112mm
• Weight: 5 kg
• LCD Screen Resolution: 480x272 pixels
• Keyboard: QWERTY-Integrated, Membrane Overlay
• Power: 300 W
• Power Supply: Single Phase (85 to 260VAC, 50-60Hz)
• Number of Controlled Axis: 2 (optional 3 and 4 axis available)
• Card Options: Booster (deep marking) and Ethernet (communication)

COMMUNICATION

• Ports: RS232, RS422, USBx2, RS485, Profibus, and Ethernet Optional Board
• Inputs/Outputs: 16
• External Output: 5V-0.5A và 24V-0.5A
• File Backup on PC: USB Key for Transfer
• Database Link: Optional
•

STEERING SOFTWARE

• Marking Files: More Than 2000
• Memory: 7110 Ko
• Alphanumeric Characters: Serial Number, Date Coding
• Logo: Creation PC Software
• Datamatrix: Up to 348 Characters, 48 x 48 dots
• Fonts:  Arial, Courier, OCR, and OCRA
• Style: Angular, Radial, Inverse, and Mirror
• Character Size: 0.1 mm to 99 mm
• Depth: Up to 0.5 mm
• Resolution Between Dots: 0.05 mm
• Speed: Up to 5 characters/sec.
• Impact Force: 9 Adjustable Levels
• Maximum Stylus Stroke: Up to 8 mm
• Work Shift Management: 10 Shifts
• Password Protection: 3 Security Levels+
• Historical Function: Password Protected
• Maintenance Assistance: Auto-Diagnostic Component
• Languages Available: 17

OPTIONS

• MAINTENANCE KIT
• ROBOTIC CABLE PROTECTION FOR PORTABLE GUNS
• MAGNETIC CLAMP
• COLUMN AND BASE FOR PORTABLE MARKING SYSTEMS
• CART FOR PORTABLE RANGE
• FUTTON BOX
