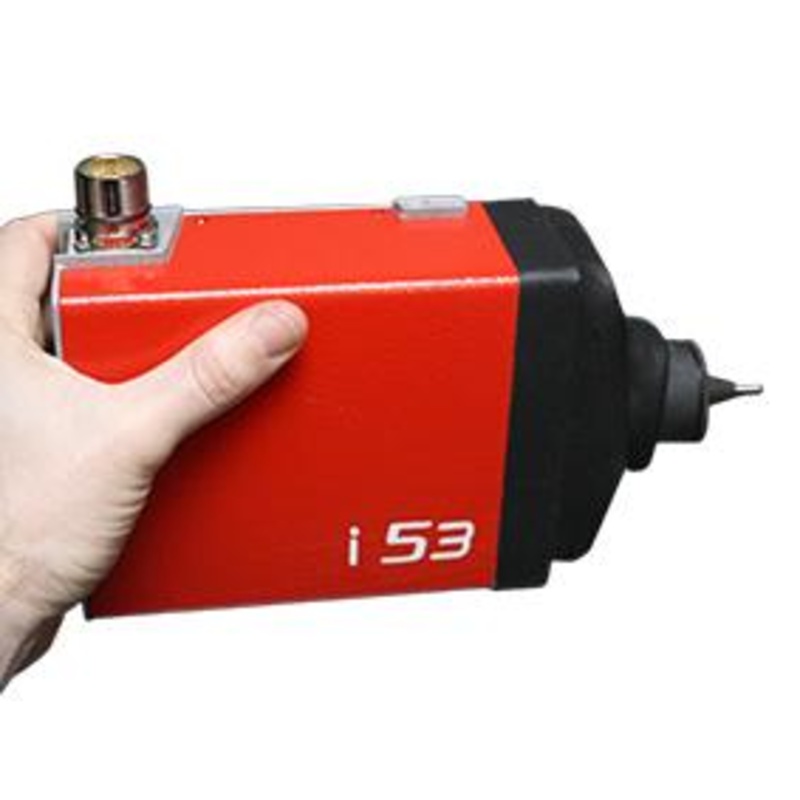

E10 R I53 DOT PEEN MARKING HEAD
5 (1 đánh giá)
The i53 dot peen marking head was engineered for seamless integration automatic production lines. Its compact, lightweight design requires minimal maintenance and consumables, and no separate pneumatic system.
Its electromagnetic driving technology allows permanent marking on parts of various shapes and surface finishes, whether flat, concave, convex, circular, raw, or machined.
The quality and accuracy of the guidance, the wide tolerance between the stylus and the part, and the speed and power of the integrated software make the i53 a high-performance tool that is super easy to operate, even with minimal training.
Contact
(+84)-964-658-958
Advantage
SUPERIOR PERFORMANCE
High speed, high stylus-to-part distance variation tolerance, powerful integrated software
The machine's internal components are protected by a heavy duty steel case, while flexible bellows allow continuous industrial use.
Easy to use, this integrated marking system can mark components of various shapes and surface materials, and will mark any material including plastics and hardened steel (up to 62HRC).
E10 R I53 DOT PEEN MARKING HEAD
MECHANIC FEATURES
- Marking Window: 50 x 20mm
- Dimensions: 250 x 130 x 70 mm
- Weight: 2.6 kg
- Robotic Cable: 7.5m (up to 15m available)
- Stylus: Carbide 60 mm
- Protective Bellows: Leather
ELECTRONIC FEATURES

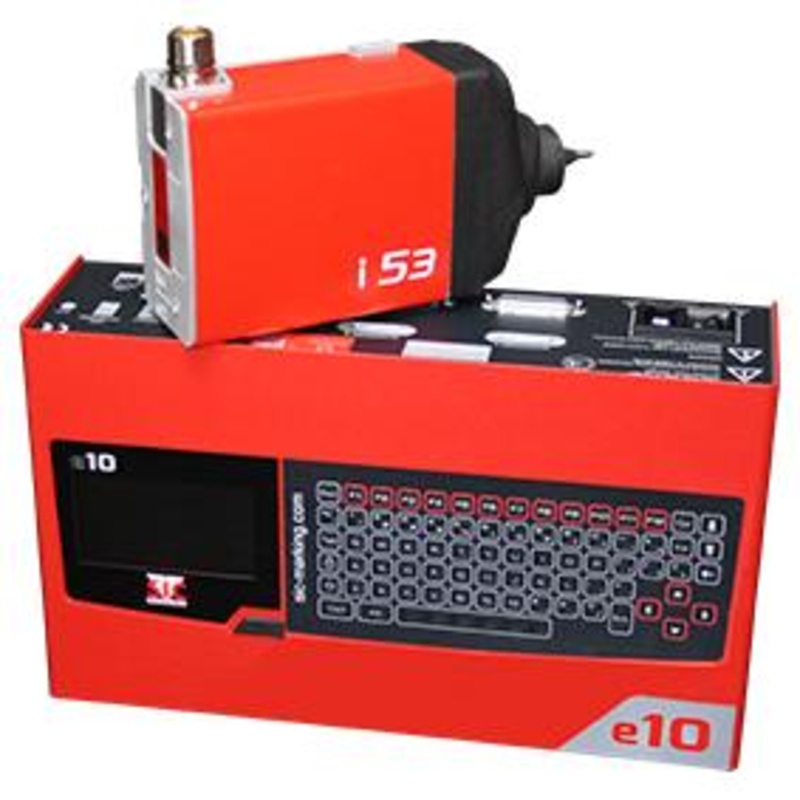

The e10 controller provides its operator with a direct and easy-to-use interface. Its large graphic display and membrane-protected QWERTY keyboard make it perfect for use in industrial environments. Because the control box does not have any openings or ventilation, its interior electrical components are protected harsh elements such as water, chemicals, dust, and material fragments.
Marking files can be up/downloaded a PC to the controller using a USB key, or entered and edited directly on the machine. The e10's (included) comprehensive software package allows for linear, angular, radial, and mirror image marking, and an optional booster card can be used for deep marking. An additional 3rd and 4th axis circuit board can be installed to control a motorized column and rotary axis. The software package incorporates self-diagnostic and machine history functions, making it a "smart" user friendly machine.
- Dimensions: 112 x 380 x 222 mm
- Weight: 5 kg
- LCD Screen Resolution: 480x272 pixels
- Keyboard: QWERTY-Integrated, Membrane Overlay
- Power: 300 W
- Power Supply: Single Phase, 85 to 260VAC, 50-60Hz
- Number of Controlled Axis: 2 (optional 3 and 4 axis available)
- Card Options: Booster (deep marking) and Ethernet (communication)
- USB Port: Transfer of Marking Files
COMMUNICATION
- Ports: Bảng tùy chọn RS232, RS422, USBx2, RS485, Profibus và Ethernet
- Inputs/Outputs: 16
- External Output: 5V-0.5A và 24V-0.5A
- File Backup on PC: USB Key for Transfer
- Database Link: Optional
- Logos: Creation and Transfer Software
- External Keyboard Input: USB
STEERING SOFTWARE
- Marking Files: More Than 2000
- Memory: >100 Mb
- Alphanumeric Characters: Serial Number, Date Coding
- Logo: Creation PC Software

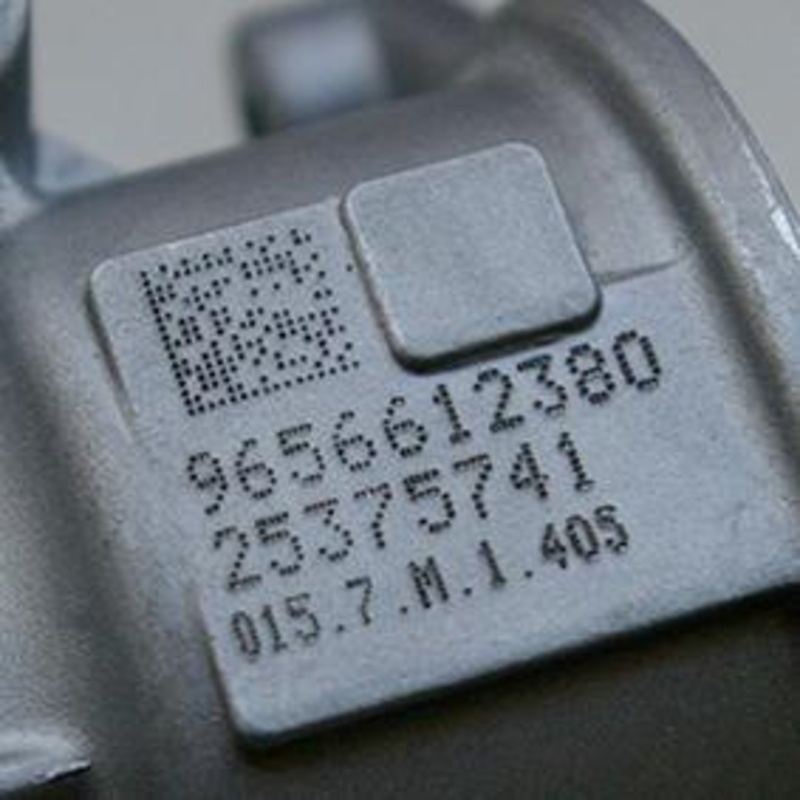

- Datamatrix: Up to 348 Characters, 48 x 48 dots
- Fonts: Arial, Comic, Comic_B, Courier, OCR, OCR_BOLD, OCRA, 4x6
- Style: Angular, Radial, Inverse, and Mirror
- Character Size: 0.1 mm to 99 mm
- Depth: Up to 0.5 mm
- Resolution Between Dots: 0.05 mm
- Password Protection: 3 Security Levels
- Historical Function: Password Protected
- Maintenance Assistance: Auto-diagnostic Component
- Languages Available: 17
OPTIONS
- MAINTENANCE KIT
- AUTOMATIC Z AXIS 50-250MM STROKE
