Ultraviolet irradiation device: Uvira
5 (1 đánh giá)
Benefits
- It is possible to obtain maximum UV energy at the optimum wavelength
- Custom-designed large UV-LEDetc. possible by efficient original water cooling system
We propose solutions for reaction, large size, variable angle, explosion proof, etc. according to your request.
Contact
(+84)-964-658-958
Request a quote

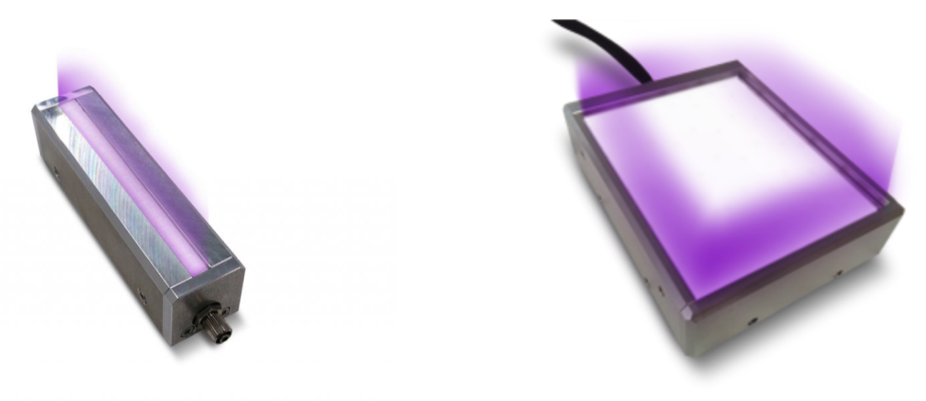

Ultraviolet irradiation device: Uvira
Features
- Combination is possible freely small area to large area
- UV curingwith less temperature rise and less heat damage
- Very thin and compact! lightweight! Freely positioned
- Built-in cooling device (water cooling system)
- Noneed for preliminary running time with UV-LED‘s ON and OFF
- Compatible with products with curvature
- As the UV-LED chip has a long life, it can significantly reduce the running cost!
The appearance and specifications of UV-LED products are subject to change without prior notice.
Applications
- Various UV curing applications
- Offset printing
- Label printing
- package
- UV curing resin
- UV ink
- Printed circuit board printing
- UV adhesive
- UV paint
- wax
- UV coating
- Organic EL
- display
- High-performance coat
- Pre-cure / Full-cure
- Film lamination
- High-performance film
- Special purpose
- Photopolymerization
- Optical fiber
- Phosphor excitation
Satisfy various requests for large size with short lead time
The request response is fast because the engineer directly enquires the customer needs. There are many options of large product orders, and it is possible to make proposals with shorter delivery times than other companies.
UV life extension
The larger the size, the more heat the UV-LEDs become and the more fragile they become, but the unique cooling method achieves a safe shelf long life.
Original design
We specialize in UV-LED arrays and larger-sized devices that match the customer’s business needs that can not be solved with existing products . We propose not only unique cooling methods but also designs that embrace safety.
Actual results include:
・ About 2 to 3 m long type
・ Large area irradiation type such as 300 mm square or more
・ φ90 mm circular uniform irradiation type
Customized cases

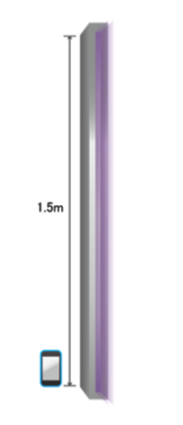

Application: 1.5m large line type array
 |
UV-LED illumination measurement More reliable, safe and trusted If the UV-LED illumination intensity is designed to be higher, the illumination intensity will naturally rise. However, with unreasonable illumination design, UV-LED will be damaged immediately. |
Specifications
 |
Basic configuration A combination of shapes, sizes, and patterns enables free radiation design.
|
| Peak wavelength | 365nm | There are also 385nm and 405 nm |
| Power consumption | 1500 W | |
| Cooling method | Water cooling | |
| Peak illumination | 5,500 mW/cm2 | WD=10mm ※1,2 |
| 4,200 mW/cm2 | WD=15mm ※1,2 | |
| 3,300 mW/cm2 | WD=20mm ※1,2 | |
| 2,700 mW/cm2 | WD=25mm ※1,2 | |
| 2,350 mW/cm2 | WD=30mm ※1,2 | |
| Irradiation area | - Mm | WD=10mm ※1,2,3 |
| 185 x 9 mm | WD-20mm ※1,2,3 | |
| 173 x 9 mm | WD=30mm ※1,2,3 | |
| 160 x 10 mm | WD=40mm ※1,2,3 | |
| 150 x 12 mm | WD=50mm ※1,2,3 | |
| Illumination distribution data | ULW365-4406-55F |
UAW365-258-1515F
| Peak wavelength | 365nm | There are also 385nm and 405 nm |
| Power consumption | 200W | |
| Cooling method | Water cooling | |
| Peak illumination | 350mW/cm2 | WD=20mm ※1,2 |
| Irradiation area | 80x43mm | WD=20mm ※1,2,3 |
※ 1 The distance the housing to the illuminance meter light receiver
※ 2 set as reference value
※ 3 Indicates the range where 90% or more of the peak illuminance can be obtained
UAW365-258-1515F
| Peak wavelength | 365, 385, 395, 405nm | |
| Power consumption | 1200W | |
| Cooling method | Water cooling | |
| Peak illumination | 380mW/cm2 | WD=20mm ※1,2 |
| Irradiation area | 750x3mm | WD=10mm ※1,2,3 |
※ 1 The distance the housing to the illuminance meter light receiver
※ 2 set as reference value
※ 3 Indicates the range where 90% or more of the peak illuminance can be obtained
