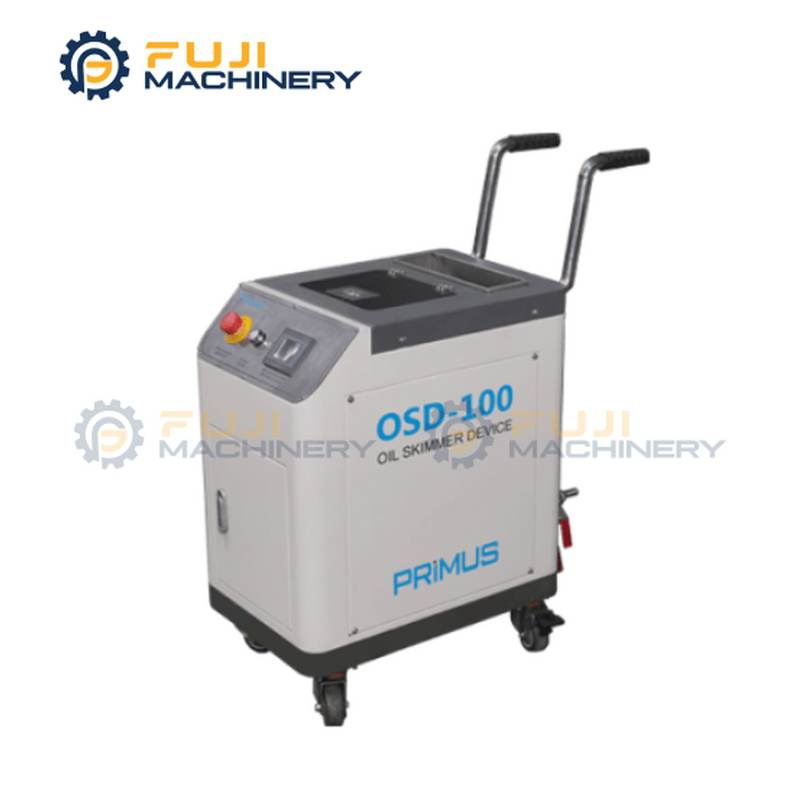

OSD-100 Oil Skimmer Machine

Our oil skimmer machine is an efficient solution that utilizes surface oil skimming technology to remove tramp oil cutting fluid systems. Through this process, contaminated oil layers are separated and removed the tank, ensuring system cleanliness and stable operational performance.

A key advantage of the OSD-100 Oil Skimmer is that it does not require fixed installation, allowing flexible use across multiple machines and production lines.

The cutting oil collected the oil layer is recovered and circulated back the coolant tank, optimizing material savings and promoting efficient reuse. With its flexibility and high performance, our oil skimmer is an essential component in metal machining production processes.

TECHNICAL SPECIFICATIONS

• Overall dimensions: 600 × 400 × 740 mm
• Power supply: Single phase – 220V
• Oil collection tank capacity: 2.5 L
• Weight: 60 kg
• Operating temperature: 0°C – 45°C
• Oil separation motor speed: 10 rpm

APPLICATIONS

Oil skimming plays a critical role in maintaining the cleanliness and efficiency of coolant tanks in metalworking machines such as milling machines, lathes, and grinding machines. By removing accumulated contaminants and tramp oil, the oil skimmer ensures stable operation and high production efficiency.

In cases of oil leakage water environments, the oil skimmer provides a rapid and effective solution to prevent environmental pollution and protect water resources. By separating oil water, the system helps maintain a clean surrounding environment.

In addition to coolant tanks, the oil skimmer can be used for any liquid tank where surface oil formation occurs, making it suitable for a wide range of industrial and manufacturing processes.

However, this product is not suitable for corrosive liquids such as strong acids, alkalis, or organic solvents. This limitation should be considered to ensure safe and effective operation.

ADVANTAGES

• Effectively resolves cutting oil aging and unpleasant odors, ensuring a clean and safe working environment.
• Advanced technology enables simple and efficient oil purification while preventing blockages caused by metal chip accumulation.
• Maintains machining performance and precision by ensuring clean cutting fluid.
• Flexible design allows use with various machining equipment, including milling, turning, grinding, and other machines.
• In addition to oil removal, the system provides odor reduction, sterilization, and antibacterial treatment for cutting fluids, helping protect operator health and maintain a safe, hygienic workplace

Contact Fuji Machinery today to receive a special quotation for the KleanX cutting oil tank cleaning solution
Smart cleaning solutions for every machining workshop
